ultra mini size led gel lamp, nail dryer, ES-20


[Enfren UV GEL Nail Polish Dryer Feature & Advantages]

1.Strong Power, Quick drying (hardening) Ability

2.Environment-friendly UV LED safe to the skin and proved was applied

3.Simple & Easy control – Touch Sensor Switch
4.C/S cost saving owing to stable quality
5.Compact & Slim Design


  • ultra mini size led gel lamp nail dryer

    ultra mini size led gel lamp nail dryer


A. Strong Power, Quick drying (hardening) Ability

- Strong  POWER

As a 1W class SMD Type UV Power LED is built-in, drying  speed is very quick, and time saving and work efficiency  improved

- Quick drying (hardening) ability: GEL drying within 20~30 seconds

- ES-20 (1 piece of 1W POWER LED) : Drying for both the Base and manicure is possible within 20, 30 seconds respectively. (Base & Top Gel : 20 sec / Color Gel : 30 sec)

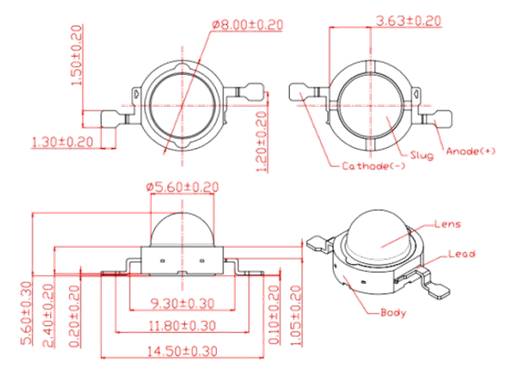

< ES-20 POWER LED Chip>

es-100-smd-led-chip picture


B. Environment-friendly UV LED safe to the skin and proved was applied

- Environment-friendly UV LED safe to the skin and proved was applied

- Enfren GEL Dryer applied the SMD type UV Power LED of 400~405nm  frequency

: Since the UV-A (320-400nm), UV-B (290-320nm) emitted from the existing UV fluorescent are not discharged, it is safe to the skin

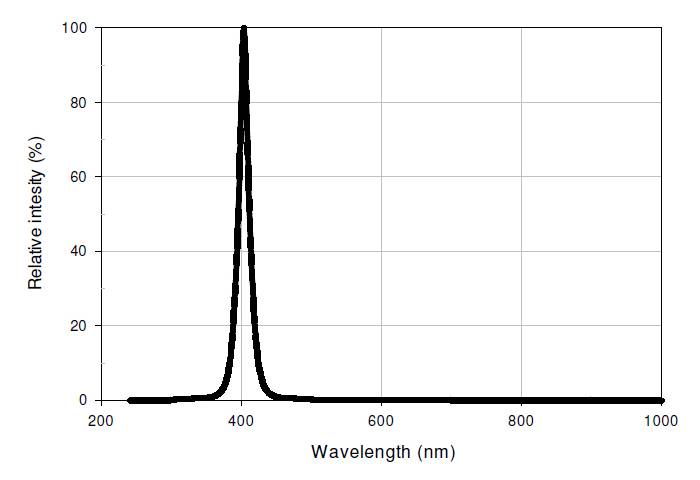

<UV LED Wave Length>

es-100-uv-led-wave-lemgth Pictire

* UV POWE LED Remarkable Advantages *

1. Eco-friendly LED lighting

: LED is eco-friendly as it does not use heavy metal such as mercury etc unlike the fluorescent

2. Drying is fast and strong as a light efficiency is high.

: Light efficiency is 3~5 times higher compared to the UV fluorescent

3. Many long hours use is possible as its life span is long

: Since the LED life span is about 50,000 hours, it is possible to use 6~8 times as long as the

UV fluorescent

4. Irradiating range is wider with the light dispersion angle against the existing lamp type LED.

: The lamp type is about 60°, but the SMD type is over  2 times wider with maximum 144°

5. Inferiority is few and safety is high by the use of small  number of LEDs.

As it use only minimum 1/5~maximum 1/10 level compared  to the lamp type, inferiority is low and

cost loss caused by  replacement is small.


C.Touch Sensor automatic movement method adopted

A system that once the hand is naturally put at the product’s lower part, it automatically  recognize and move was embodied (automatic recognition – movement – completion)

- As it equipped with a static capacity method touch sensor that moves after sensing the
electric current running in a man’s body, it is possible to use without wrong functioning from
static electricity or outside influence irrespective of day & night.

- It is normally operating even if it is stained with manicure, foreign substance etc or

- As a Timer is built-in, it automatically close after operating.


Touch Sensor automatic movement method adopted .

D. C/S cost saving owing to stable quality

- Use of the exclusive LED Driver IC : Product’s safety improvement through static current



E. Compact & Slim Design

- Ultra Size and  Ultra Light   : Easily carry  any where.
-  6.4 x 7.9 x 5.3 cm, body weight : 43g.


ultra mini size es-20.



F. Using several source of electric power

- Possible to use AC Adaptor, PC(LAPTOP),Smarter phone battery pack
etc. With USB mini cable.
using USB CABLE from laptop.

es-20 size
